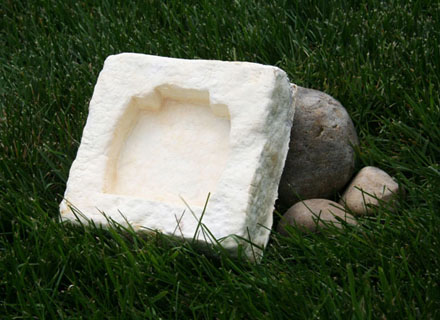

EcoCradle™ packaging material is composed of agricultural byproducts (cotton gin trash) bound together by fungal mycelium. With an appearance and functionality of polymer foams, EcoCradle™ can be manufactured with just one eighth the energy and one tenth the carbon dioxide of traditional foam packing material. Photograph courtesy of Edward Browka, Ecovative Design

View a time-lapse video of mushroom roots growing in a pre-designed mold.  It is available at the bottom of the article.

A new packing material that grows itself is now appearing in shipped products across the country.

The composite of inedible agricultural waste and mushroom roots is called Mycobond™, and its manufacture requires just one eighth the energy and one tenth the carbon dioxide of traditional foam packing material.

And unlike most foam substitutes, when no longer useful, it makes great compost in the garden.

The technology was the brainchild of two former Rensselaer Polytechnic Institute undergraduates, Gavin McIntyre and Eben Bayer, who founded Ecovative Design of Green Island, N.Y., to bring their idea into production.

"We don't manufacture materials, we grow them," says McIntyre. "We're converting agricultural byproducts into a higher-value product."

Because the feedstock is based on renewable resources, he adds, the material has an economic benefit as well: it is not prone to the price fluctuations common to synthetic materials derived from such sources as petroleum." All of our raw materials are inherently renewable and they are literally waste streams," says McIntyre. "It's an open system based on biological materials."

With support from the National Science Foundation (NSF), McIntyre and Bayer are developing a new, less energy-intensive method to sterilize their agricultural-waste starter material--a necessary step for enabling the mushroom fibers, called mycelia, to grow. McIntyre and Bayer are replacing a steam-heat process with a treatment made from cinnamon-bark oil, thyme oil, oregano oil and lemongrass oil.

The sterilization process, which kills any spores that could compete with Ecovative's mushrooms, is almost as effective as the autoclaving process used to disinfect medical instruments and will allow the Mycobond™ products to grow in the open air, instead of their current clean-room environment.

"The biological disinfection process simply emulates nature," says McIntyre, "in that it uses compounds that plants have evolved over centuries to inhibit microbial growth. The unintended result is that our production floor smells like a pizza shop."

Much of the manufacturing process is nearly energy-free, with the mycelia growing around and digesting agricultural starter material--such as cotton seed or wood fiber--in an environment that is both room-temperature and dark. Because the growth occurs within a molded plastic structure (which the producers customize for each application), no energy is required for shaping the products.

Once fully formed, each piece is heat-treated to stop the growth process and delivered to the customer--though with the new, easier, disinfection treatment, Bayer and McIntyre are hoping the entire process can be packaged as a kit, allowing shipping facilities, and even homeowners, to grow their own Mycobond™ materials.

Based on a preliminary assessment McIntyre and Bayer conducted under their Phase I NSF SBIR award, the improvements to the sterilization phase will reduce the energy of the entire manufacturing process to one fortieth of that required to create polymer foam.

"This project is compelling because it uses innovative technology to further improve Ecovative's value, while also providing the environmental benefits that NSF is looking for," said Ben Schrag, the NSF program officer who oversees Ecovative's Small Business Innovation Research (SBIR) award. "The traction that they have gotten with their early customers demonstrates how companies can build strong businesses around products whose primary competitive advantage lies in their sustainability."

In addition to the packaging product, called EcoCradle™, Ecovative has developed a home insulation product dubbed greensulate™. Comparable in effectiveness to foam insulation, it is also highly flame retardant.

Ecovative is already producing custom protective packaging products for several Fortune 500 companies, though they are leveraging the new disinfection process to produce turnkey systems that they plan to deploy to off-site customers and do-it-yourself homeowners by 2013.

In addition to NSF, Evocative has received support from the USDA Agricultural Research Service, the Environmental Protection Agency, and the New York State Energy Research and Development Authority.

This news is from the National Science Foundation, 26 July 2010

A packing material called Mycobond™, a composite of inedible agricultural waste and mushroom roots, grows itself. As a result, its manufacture requires just one eighth the energy and one tenth the carbon dioxide of traditional foam packing material. This time-lapse sequence shows a Mycobond™ packing component growing within a pre-designed mold. Video courtesy of Ecovative Design
